Fabric

Selecting Plans

You can get an in-depth understanding of a fabric by exploring the different plans and their connections at common points. You do this by selecting specific plans to be shown in the main and inset maps, then using Fabric Window tools or Main Map tools to examine their properties or make calculations.

Basic Use

You can view one plan at a time, or select a combination of plans.

One-at-a-time

  1. On the toolbar, click to set mode.
  2. In the plan list, click on any to show just that plan.

Combination

  1. On the toolbar, click to set mode.
  2. In the plan list, click any number of 's to show selected plans.

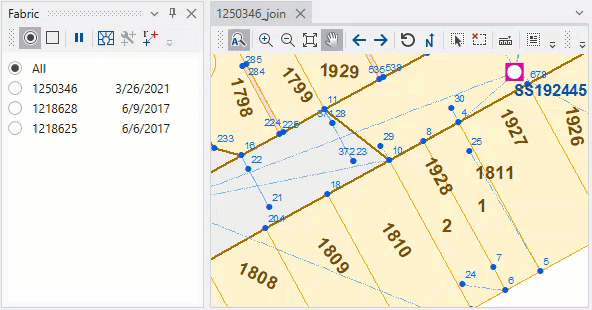

Select Combo Demo
How to view single plans and combinations. (CLICK IMAGE TO START DEMO)

Details

Note: The default state of a mode is to show all plans. If no plans are checked, all plans are shown.

Important! Only the features of visible plans are selectable when using Cadastral Tools.
